RF13A
Reusable Video Cystourethroscope
Urology Department
-
High Definition
-
Reusable
-
IPX7
High Definition
Reusable
IPX7

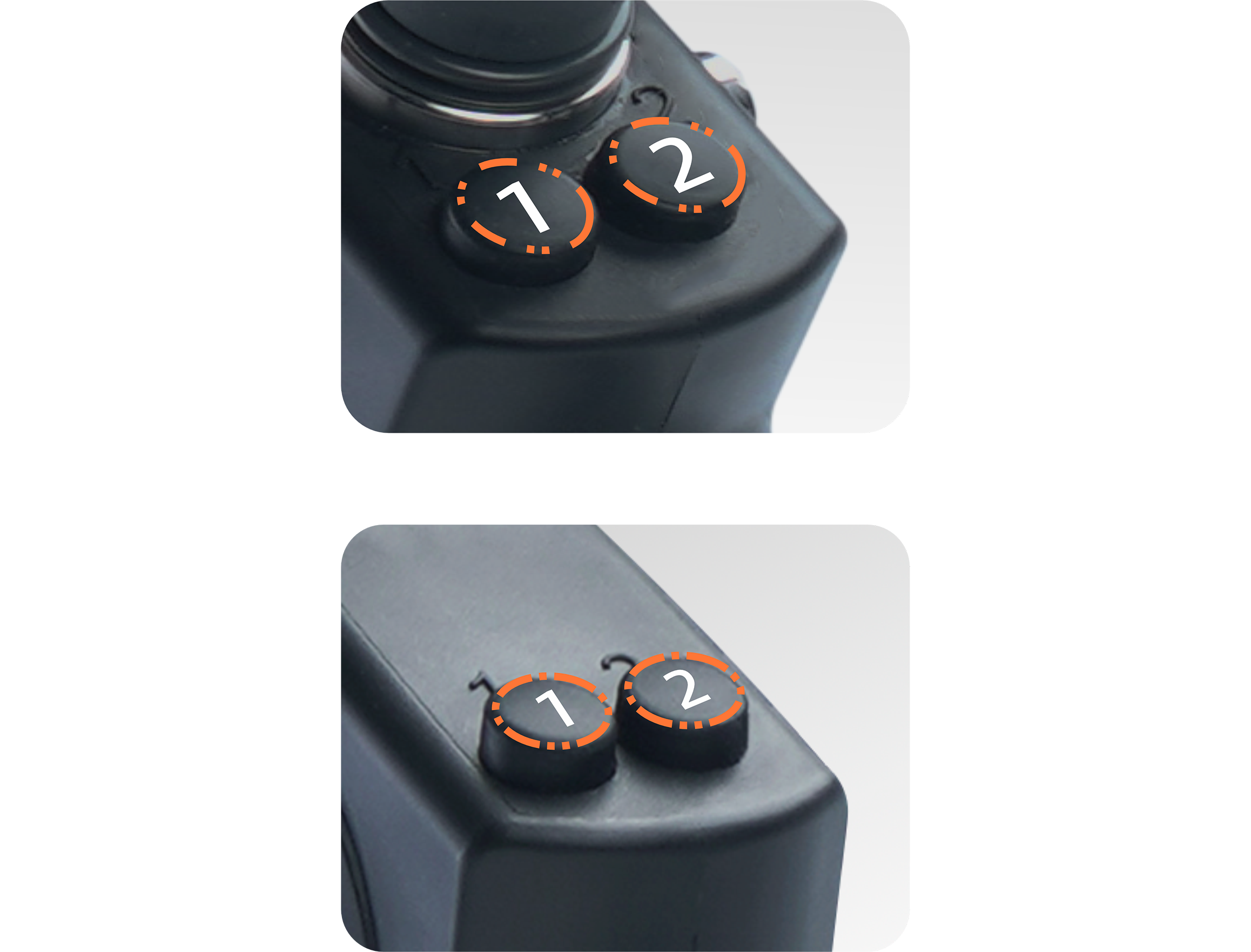

① Short press to adjust brightness/long press to zoom or freeze.
② Short pres s to take photo/long pres s to record video.

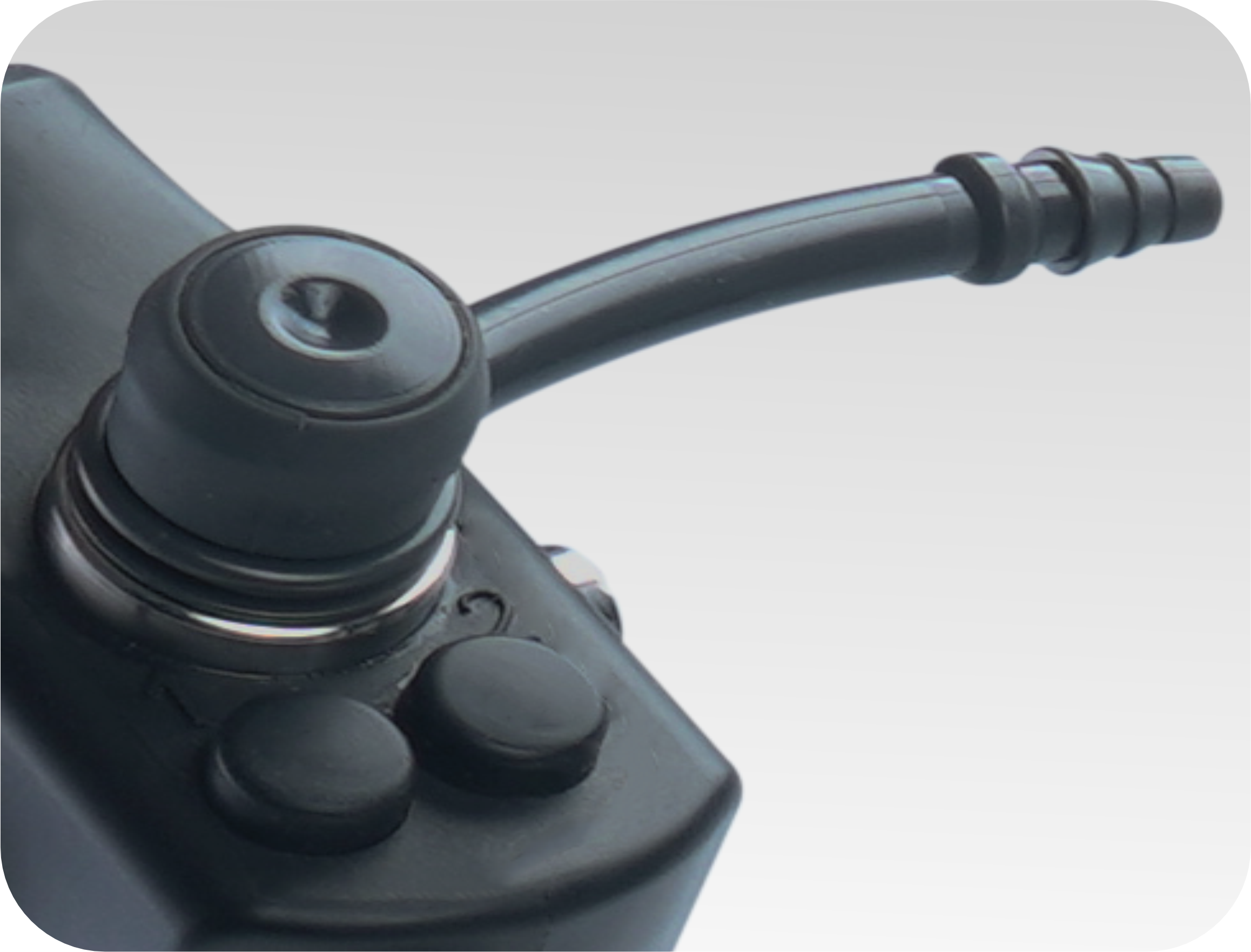

Integrated suction enables clear visualization and precise biopsy collection, leading to improved surgical outcomes and reduced complications.

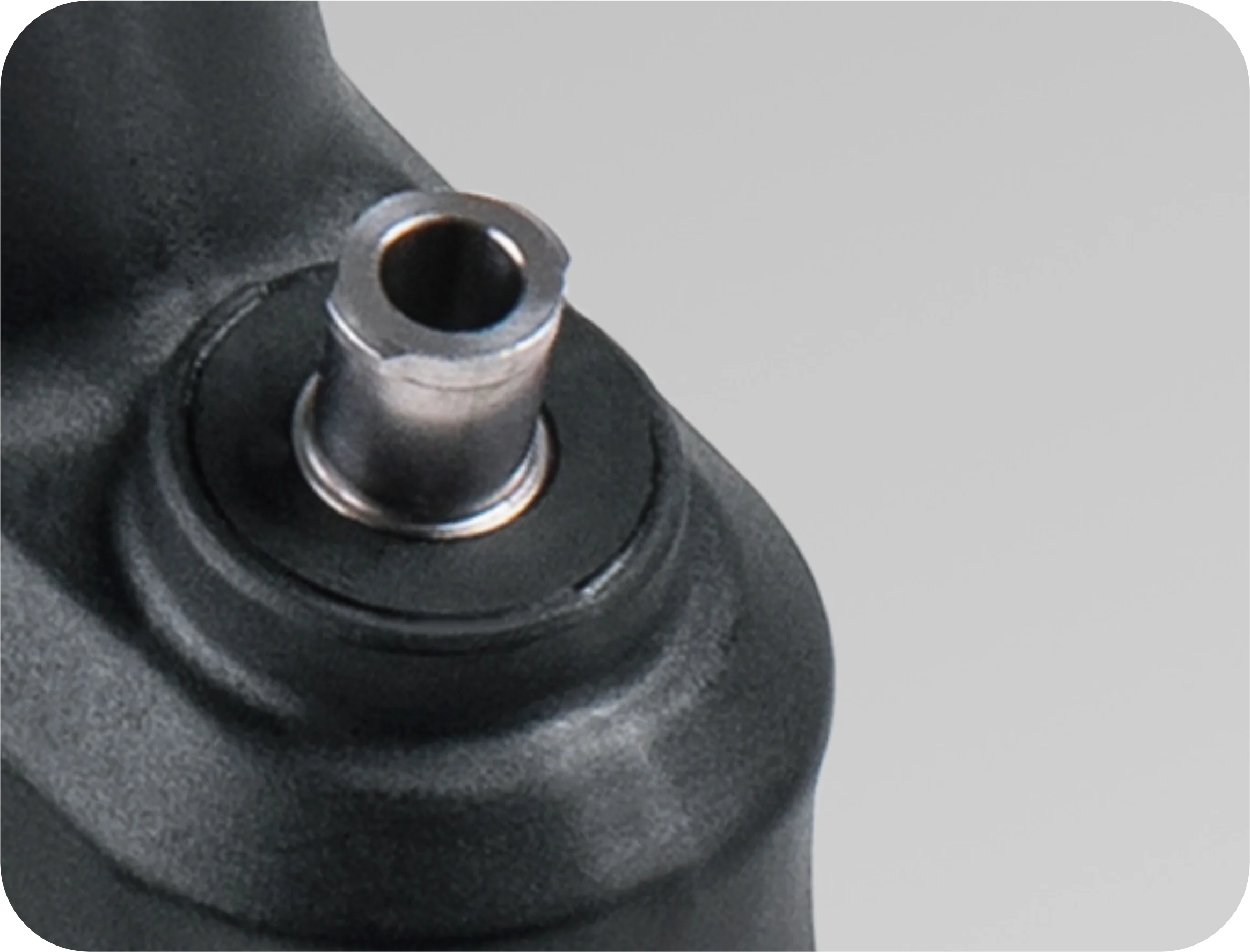

Accessing with Y-Adapter.

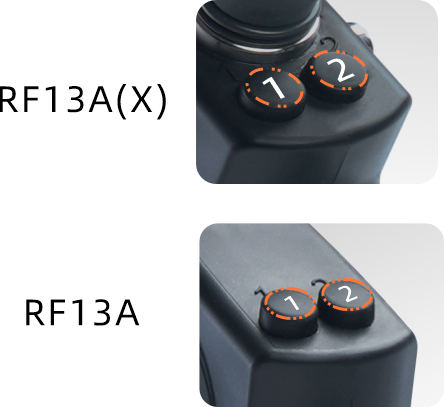

| RF13A(X) | RF13A | |
|---|---|---|
| Suction port | ✔ | - |
| Insertion tube outer diameter | 4.9mm/5.5mm | 4.9mm/5.5mm |
| Instrument channel diameter | 2.2mm/2.6mm | 2.2mm/2.6mm |
| Angulation range | U210°/D130° | U210°/D130° |
| Working length | 380mm±10％ | 380mm±10％ |
| Field of view | 100° | 100° |
| Image resolution | 1280*720P | 1280*720P |
| RF13A(X) | RF13A | |
|---|---|---|
| Suction port | ✔ | - |
| Insertion tube outer diameter | 4.9mm/5.5mm | 4.9mm/5.5mm |
| Instrument channel diameter | 2.2mm/2.6mm | 2.2mm/2.6mm |
| Angulation range | U210°/D130° | U210°/D130° |
| Working length | 380mm±10％ | 380mm±10％ |
| Field of view | 100° | 100° |
| Image resolution | 1280*720P | 1280*720P |
